Advertising Scrolling System Solar Bus Shelter With National
Characteristics
1. product detail
1) Solar energy bus shelter production, specifications should be
clear
No rules, no circles. The size, width, height and other
specifications should be properly planned and designed. There will
be different arrangements in the production of bus shelters in
different regions, and the production of solar bus shelters needs
to be well arranged in terms of specifications to reflect its real
value. The length is between 2-4 vehicles. Such a design plans a
suitable parking position for the parking of vehicles, which is
convenient for passengers to get on and off the bus. In addition,
guardrails facing the front door, middle door and back door of the
bus should be set up to remind passengers to get on the bus in an
orderly manner and queue up to avoid crowded stampede events. The
width of solar bus shelter is between 1 m and 1.5 m, which is too
narrow and crowded, and too wide wastes land resources. The ceiling
is equipped with solar panels. The number of solar panels should be
calculated according to the power consumption of the light boxes
below. Too few solar panels are not enough to light the light
boxes, and too many solar panels cause waste of resources. The
specifications of steps shall be specified according to the
specifications of streets and roads, with the safety of passengers
as the main purpose.
2) Solar energy bus shelter production, material to be professional
The selected materials cannot be sloppy. The integrated light
board, column bearing capacity and advertising light box
wear-resistant capacity should all be of the best materials. As the
saying goes, a skillful woman can't cook without rice. Only when
she has high-quality materials can she play a better role
professionally. In addition, the team members should be
professional in technology, and the designers should have creative
thinking, neither stick to the tradition nor forget the origin.
They should have a strong sense of responsibility for the
production of solar bus shelters and pay attention to people's
needs. Without empty talk, we promise to provide customers with
professional post maintenance for post maintenance, regularly check
the working status of bus shelters, and show professional
characteristics in terms of aesthetics and function.
Here is the size and side view of thisStainless Steel Solar System Bus Stop Shelter And Bus Shelters
2. Technical parameter
Products name | Bus shelter/bus stop/Canopy/Street furniture | Remark |
Dimensions (mm) | Shelter: 6200 x 4000 x 1600 | Customize Available |
Light box poster :1185*1750 | Digital display available |
Ceiling/Roofing | Aluminum sheet/Laminate glass/ Polycarbonate sheet | As per request depend on budget |
Rear Wall | Laminated glass 4+1.52+4 | |
Frame structure | 304 Stainless steel/ Galvanize steel / Aluminum profile | Hot dip galvanized + Powder coated |
Illumination | illuminate by LED ceiling lighting, | City electricity or solar powered |
Advertising space | Integrate with high quality LED backlit light boxes | Could be outdoor digital signage |
Optional Fuction | Solar powered, Smart bus route system, Camera, Mobile charging,
Trash Bin, Digital screen | |
Production time | 100 shelters per month. | Customize design available |
Warranty | 10 years | |
Solar system
Function Description
1. Provide power for light and adverting light boxes scrolling
picture system.
2. Can work four hours at night after generate electricity at day.

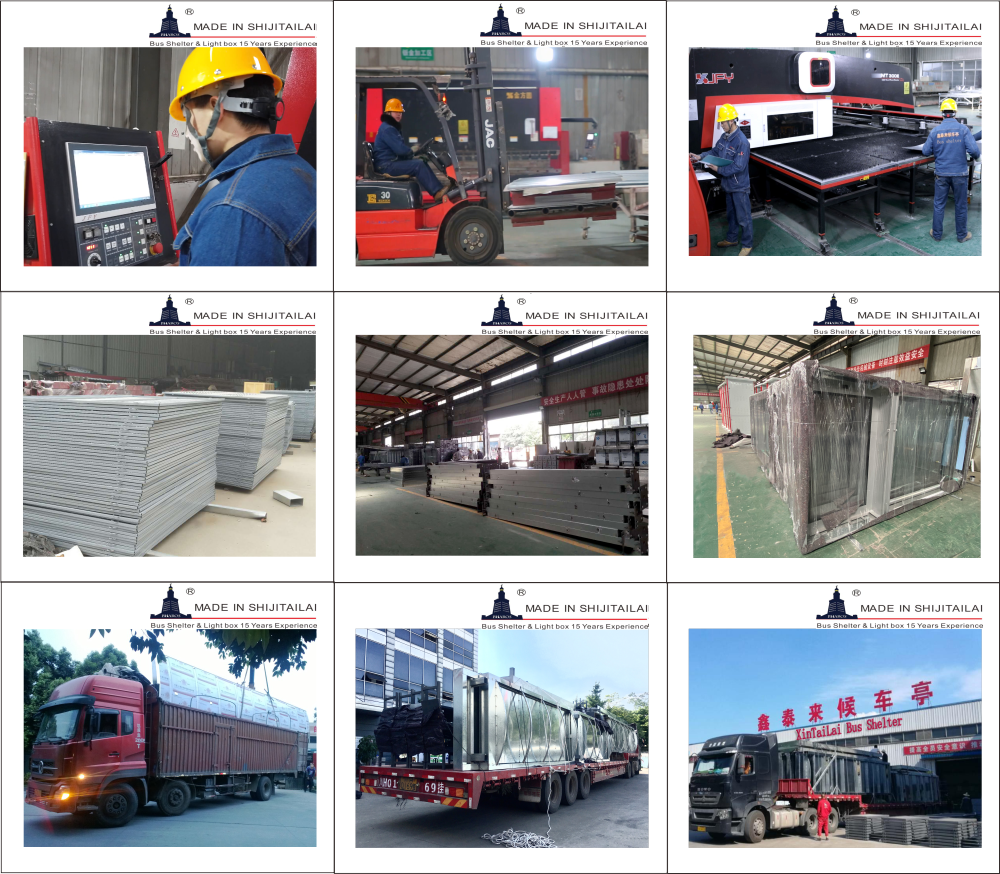

3. Product processing
First, production materials
The materials commonly used in the market of building bus shelters
are stainless steel and galvanized sheet. These two materials are
mostly used, and aluminum profiles are also useful, but they are
relatively few. Other main materials include PC fire-resistant
board and toughened glass, which are used on both sides of the
light box and placed outside the advertising pictures. Generally,
aluminum-plastic plates will be used under the ceiling, and
galvanized plates will be used for the upper part of the ceiling
and the frame of the light box. | Second, production specifications
The basic specifications for the production of urban bus shelters
are about 2.3-2.9 meters in height, 1.6-2 meters in total width of
the roof, and 3-8 meters in length. Only the size of the
specifications can be selected according to itself, or it depends
on the part where the bus shelters are built. | Third, antirust treatment
There are several common methods of antirust surface treatment,
such as common paint treatment, automobile paint treatment,
fluorocarbon paint treatment, high-temperature electrostatic
spraying and so on. If we use aluminum alloy as bus shelter, we can
use high-temperature electrostatic spray to do antirust treatment,
the effect is very beautiful. |
4. Customer visit
 |  |  |
| Black from Brazil visited the company to inspect the bus shelter
project | Discussion meeting, put forward suggestions and opinions on
technical problems of bus shelters | Meeting, negotiation, agreement, cooperation and mutual win. |
 |  |  |
| Dubai Abu Dhabi customer conference negotiation | Site inspection and evaluation of the plant | Technical director guides technical problems on site |
Customer Visit and Cooperation
Our products are sold through out the world, The foreign customers
are very kind to visit our company/factory and negotiate business
face to face.
We will surely make our best effort to provide best solution and
service.
5. Product application
 |
 |
 |
| Outdoor galvanized public modern advertising bus stop | Stainless steel modern bus station shelter design | Metal Structure Stainless Steel Bus Stop Shelter Outdoor Furniture
Design |
size:L6000*W1518*H2400
Main material:Galvanized,steel | size:L3500*W1600*H2915
Main material:stainless steel,tempering glass | size:L3000*W1650*H2915
Main material:Galvanized steel |
 |
 |
 |
| Outdoor galvanized modern advertising bus stop | Outdoor Bus Station Shelter Galvanized Public With Modern
Advertising Light Box | Outdoor public street advertising bus shelter with digital screen |
size:L3500*W1600*H2800
Main material:Galvanized steel | size:L3500*W1518*H2915
Main material:stainless steel | size:L12000*W1600*H2915
Main material:Aluminum profile |

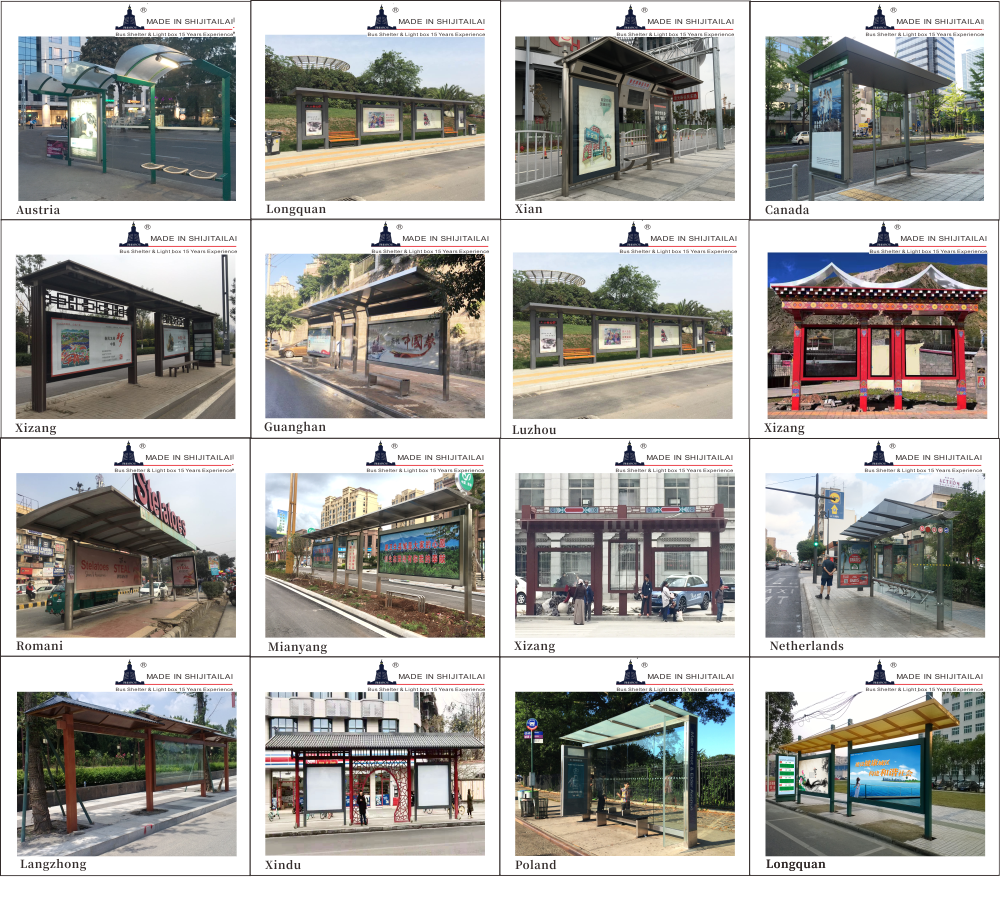

Case Show:
If you are interested in any of our products, or wish to place a
customized order, please contact us. We look forward to
establishing a good and long-term business relationship with you.
6. Our Certificate
For more information, please just feel free to contact us.
Q: Can I visit your factory ?
A: We welcome any client and friends to visit our factory any time.
Q: What is your main products?
A: We produce street media furniture such as Bus shelter, static
and scrolling light boxes, Digital mupi, and also scrolling
systems.
Q: What is the production Time?
A:Generally orders can be delivered within 30 days. we can produce
300 outdoor light boxes per month, and 100-200 bus shelters per
month.
Q: How can you help us to install?
A: We provide full set of installation guiding drawing for our
clients, and email, phone support is available all the time.
